Purpose
The purpose of this document is to define the conversion approach to create PM Assembly / Construction Type in S/4 HANA. For the purpose of this document, the term A/CT shall refer to the object PM Assembly / Construction Type.
Construction Type
In SAP Plant Maintenance (SAP S4/HANA EAM), the Construction Type is a Material Master reference assigned to a technical object (Equipment or Functional Location) to represent its standard design or assembly structure. This allows the system to link standard data such as Bills of Materials (BOM), Task Lists, and Catalogs to multiple technical objects that share the same physical construction
The Catalog profile assigned to the Construction Type is used to define the Object Parts, Causes, Damages of the asset.
Assemblies
In SAP Plant Maintenance (SAP S/4HANA EAM), Assemblies are represented as IBAU materials. These materials define the construction structure of an asset and are used to group consumable materials typically required during maintenance activities.
Each Assembly is associated with a Material Bill of Material (BOM) that specifies the component materials forming part of the Assembly structure. These Material BOMs are subsequently assigned to the Construction Type of the corresponding Equipment or Functional Location, enabling standardized and global use across Syensqo.
A/CT needs to be constructed as a logical grouping based on the above.
Conversion Scope
The scope of this document covers the approach for creation of A/CT in S/4 HANA following the PM Assembly / Construction Type Master Data Design Standard.
The creation of A/CT follows the endorsed EAM Core Data Design describing the Asset Identification Methodology.
Conversion from legacy will adopt a hybrid method: DCT and Extraction for migration.
Legacy system did not have the concept of using Construction Type in the similar manner as S/4 Hana. Hence, there is no extraction of Construction Type required from Legacy.
However, in the Legacy system, the Assemblies are used as part of Bill of Material (BOM) to represent the structure of the assets. These Assemblies will be extracted for migration into S/4 Hana.
In SAP, the Assembly / Construction Type data is a Material Master that uses a predefined list of Material Types.
The data from legacy system includes:
1. All Assembly with the Material Type (MARA-MTART) from the below list:
- IBAU-Maintenance Assembly
- Z750-0 Aggregates PM IBAU (PF2 only)
- ZZ90-Maintenance Assembly (PF2 only)
- ZIBA-Maintenance Assembly (WP2 Only)
2. From the above list, only extract the objects that are assigned to:
- BOM Header (MAST-MATNR) for plants (MAST-WERKS) in scope, or
- BOM Item (STPO-IDNRK) for plants (MAST-WERKS/TPST-WERKS/EQST-WERKS) in scope, or
- Functional Location Construction Type (IFLOT.SUBMT) for plants (ILOA-SWERK) in scope, or
- Equipment Construction Type (EQUZ.SUBMT) for plants (EQUI-SWERK) in scope, or
- Task List Construction Type (PLKO-ISTRU) for plants (PLKO-IWERK) in scope
For the relevant plants in scope, refer to Value Mapping: Plant (Maintenance Plant = Yes).
Relevant languages (MAKT-SPRAS) in scope for Assembly Description include the following:
- English (E)
- French (F)
- Italian (I)
- Mandarin (1)
- Brazilian Portugese (P)
- German (D)
- Spanish (S)
The data from legacy system excludes:
1. Assembly marked for deletion (MARA-LVORM = 'X'), OR
2. If the Assembly (MARA-MATNR) is the BOM Header (MAST-MATNR) and is not assigned as a Construction Type to the Functional Location (IFLOT-SUBMT) / Equipment (EQUZ-SUBMT) / Task List (PLKO-ISTRU) OR
3. If the Assembly (MARA-MATNR) is the BOM Item (STPO-IDNRK) and is assigned to a BOM Header (MAST-MATNR) from (2) OR
4. If the Assembly (MARA-MATNR) is the BOM Header (MAST-MATNR) where all the BOM Items (STPO-IDNR) are also part of the Material Type (MARA-MTART) from the above inclusion list (1)
List of Tables to extract for this object is maintained here: Extract Table Register.
List of source systems and approximate number of records:
| Source | Scope | Source Approx No. of Records | Target System | Target Approx No. of Records |
|---|---|---|---|---|
| DCT | A/CT for plants which do not have data existing from PF2 and WP2. Construction Type for assignment to Functional Location, Equipment and Task List originating from PF2 and WP2. Additional Assembly for assignment to BOM Header originating from PF2 and WP2 (if required). | 1,000 30,000 | S/4 HANA S/4 HANA | 1,000 30,000 |
| PF2, WP2 | Relevant Assembly will be extracted from PF2 and WP2. | 30,000 | S/4 HANA | 30,000 |
Additional Information
Multi-language Requirement
A/CT description will be made available in English.
Multi language is supported for A/CT. Login via a different language will have its description displayed in the logon language if the language key is maintained in the A/CT.
A/CT Description will be updated in all relevant Languages for Plants in scope.
Document Management
Not Applicable
Legal Requirement
Not Applicable
Special Requirements
Not Applicable
Target Design
The technical design of the target for this conversion approach
1. A/CT (Main)
| Table | Field | Data Element | Field Description | Data Type | Length | Requirement |
|---|---|---|---|---|---|---|
| MARA | MATNR | MATNR | Material Number | CHAR | 40 | Mandatory (Internal Number) |
| MARA | MBRSH | MBRSH | Industry Sector | CHAR | 1 | Mandatory |
| MARA | MEINS | MEINS | Base Unit of Measure | UNIT | 3 | Mandatory |
| MARA | MTART | MTART | Material type | CHAR | 4 | Mandatory |
| MARA | RBNRM | RBNR | Catalog Profile | CHAR | 9 | Conditional |
| MARA | BISMT | BISMT | Old material number | CHAR | 40 | Mandatory |
| MARA | MAKTX_EN | MAKTX | Description | CHAR | 40 | Mandatory |
Note: The English description will be displayed as part of the Basic Data 1 view.
2. A/CT (Short Text)
| Table | Field | Data Element | Field Description | Data Type | Length | Requirement |
|---|---|---|---|---|---|---|
| MAKT | MATNR | MATNR | Material Number | CHAR | 40 | Mandatory |
| MAKT | SPRAS | SPRAS | Language Key | LANG | 1 | Mandatory |
| MAKT | MAKTX | MAKTX | Material description | CHAR | 40 | Mandatory |
Note: Each A/CT must have 1 entry for each language in scope: English, French, Italian, Mandarin, Brazilian Portuguese, German and Spanish. English language is displayed in Basic Data 1 view.
3. A/CT (Characteristics Values Header)
| Table | Field | Data Element | Field Description | Data Type | Length | Requirement |
|---|---|---|---|---|---|---|
| KLAH | KLART | KLASSENART | Class Type | CHAR | 3 | Mandatory |
| INOB | OBTAB | TABELLE | Name of Database Table for Object | CHAR | 30 | Mandatory |
| KLAH | CLASS | KLASSE_D | Class number | CHAR | 18 | Mandatory |
| MARA | MATNR | MATNR | Material Number | CHAR | 40 | Mandatory |
| KLAH | STATU | KLSTATUS | Class Status | CHAR | 1 | Mandatory |
4. A/CT (Characteristics Values Allocation)
| Table | Field | Data Element | Field Description | Data Type | Length | Requirement |
|---|---|---|---|---|---|---|
| KLAH | KLART | KLASSENART | Class Type | CHAR | 3 | Mandatory |
| INOB | OBTAB | TABELLE | Name of Database Table for Object | CHAR | 30 | Mandatory |
| KLAH | CLASS | KLASSE_D | Class number | CHAR | 18 | Mandatory |
| MARA | MATNR | MATNR | Material Number | CHAR | 40 | Mandatory |
| CABN | ATNAM | ATNAM | Characteristic Name | CHAR | 30 | Mandatory |
| AUSP | ATWRT | ATWRT | Characteristic Value | CHAR | 30 | Mandatory |
| AUSP | POSNR | KPOSNR | Item Number | CHAR | 3 | Mandatory |
A/CT Data strictly adheres to the Master Data Standard. The complete information of the key fields that hold the A/CT information follows the Master Data Standard document that is located here
Data Cleansing
| ID | Criticality | Error Message/Report Description | Rule | Output | Source System |
|---|---|---|---|---|---|
| 1010-01 | C3 | Assembly is a BOM Header that is not relevant because they are not assigned to any relevant BOM / Equipment / FLoc / Task List. Relevant Assembly must be assigned to relevant BOM / Equipment / FLoc / Task List. | To report Assembly which is a BOM Header that is not assigned to any relevant BOM / Equipment / FLoc / Task List | Assembly, Description | PF2, WP2 |
| 1010-02 | C3 | Assembly is a BOM Item and is assigned to a BOM Header that is not relevant because they are not assigned to any relevant BOM / Equipment / FLoc / Task List. Relevant Assembly as BOM Item must have BOM Header assigned to relevant BOM / Equipment / FLoc / Task List. | To report Assembly which is a BOM Item of a BOM Header that are not assigned to any relevant BOM / Equipment / FLoc / Task List | Assembly, Description, BOM Header Material, BOM Plant | PF2, WP2 |
| 1010-03 | C3 | Assembly is a BOM Header where all the BOM Items are also part of the Assembly Material Type. Relevant Assembly as a BOM Header cannot have all the BOM Items with Assembly Material Type. | Assembly is a BOM Header where all the BOM Items are also part of the Assembly Material Type:
| Assembly, Description, BOM Plant | PF2, WP2 |
| 1010-04 | C3 | CT of Equipment assigned with Material which are not relevant Assembly / Construction Type (Based on Material Type). If there is a BOM for these materials, or if these materials are valid, they should be included as components within the BOM (to update the DCT for BOM and Assembly) | To report relevant Equipment which have Construction Type assigned with Material which are not part of the Assembly Material Type:
| Equipment, Equipment Description, Construction Type, Material Type of Construction Type | PF2, WP2 |
| 1010-05 | C3 | CT of Functional Location assigned with Material which are not relevant Assembly / Construction Type (based on Material Type). If there is a BOM for these materials, or if these materials are valid, they should be included as components within the BOM (to update the DCT for BOM and Assembly) | To report relevant Functional Location which have Construction Type assigned with Material which are not part of the Assembly Material Type:
| Functional Location, Functional Location, Description, Construction Type, Material Type of Construction Type | PF2, WP2 |
Note: List of Cleansing is maintained here: Conversion Specs Register (DCT & Cleansing Report)
Conversion Process

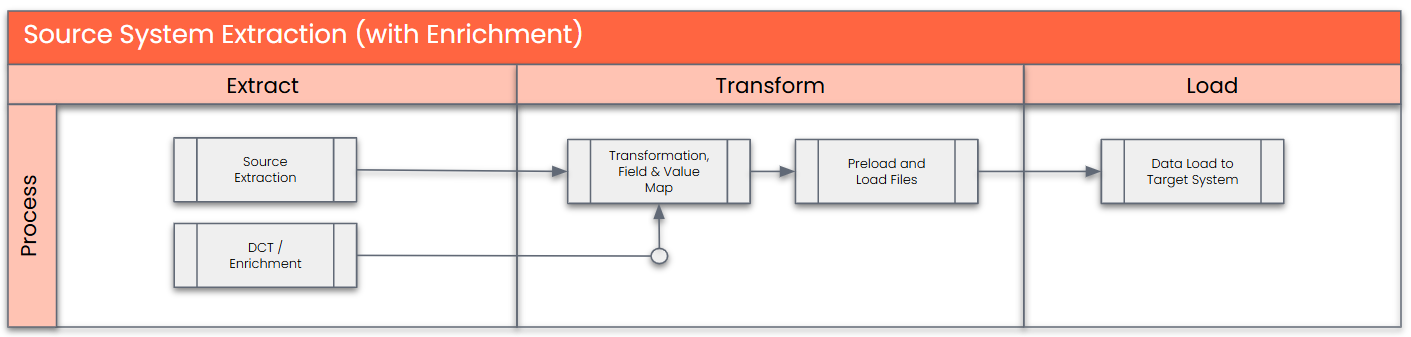

The high-level process is represented by the diagram below:
1. Source = PF2/WP2:
Collection will be done manually in the Data Collection Template for the following scenarios:
- For sites not on SAP-PF2 or WP2 systems
- For new A/CTs that need to be created to support the to-be design
Data Privacy and Sensitivity
Not ApplicableExtraction
Extract data from a source into Syniti Migrate. There are 2 possibilities:
- The data exists.Syniti Migrate connects to the source and loads the data into Syniti Migrate. There are 3 methods:
- Perform full data extraction from relevant tables in the source system(s).
- Perform extraction through the application layer.
- Only if Syniti Migrate; cannot connect to the source, data is loaded to the repository from the provided source system extract/report.
- The data does not exist (or cannot be converted from its current state). The data is manually collected by the business directly in Syniti Migrate. This is to be conducted using DCT (Data Collection Template) in Syniti Migrate
The agreed Relevancy criteria is applied to the extracted records to identify the records that are applicable for the Target loads
Extraction Run Sheet
| Req # | Requirement Description | Team Responsible |
|---|---|---|
| 1 | Extract data from source system based on relevancy rule | SyWay Data Team |
Selection Screen
| Selection Ref Screen | Parameter Name | Selection Type | Requirement | Value to be entered/set |
|---|---|---|---|---|
| Not Applicable |
Data Collection Template (DCT)
Target Ready Data Collection Template will be created for A/CT data with exception of some fields which require transformation as mentioned in the transformation rule.
Delta Data Management: Initial collection will be done via the report and one-time load to the DCT will be performed. Any delta after the initial collection within the DCT will require business to take due diligence to ensure any subsequent delta cleansing is verified and aligned within the DCT.
Note: All rules specified below should be documented as a tooltip in the DC Page.
Format:
Line 1: Mandatory / Conditional
Line 2: Remaining text
1. A/CT (Main) Data Construction Rules
| Field Name | Field Description | Rule |
|---|---|---|
| zLegacyMATNR | Old material number | Mandatory Must be unique |
| RBNRM | Catalog Profile | Conditional Required if Characteristic for "A_SUB_ASSEMBLY" = No Blank if Characteristic for "A_SUB_ASSEMBLY" = Yes Must exist in Catalog Profile DCT |
| MAKTX_EN | Description (English) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same English language key texts) |
| MAKTX_FR | Description (French) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same French language key texts) |
| MAKTX_IT | Description (Italian) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Italian language key texts) |
| MAKTX_ZH | Description (Mandarin) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Mandarin language key texts) |
| MAKTX_PT | Description (Brazilian Portuguese) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Brazilian Portugese language key texts) |
| MAKTX_DE | Description (German) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same German language key texts) |
| MAKTX_ES | Description (Spanish) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Spanish language key texts) |
2. A/CT (Characteristics Value Allocation) Data Construction Rules
| Field Name | Field Description | Rule |
|---|---|---|
| zLegacyMATNR | Old material number | Mandatory Key to link to the A/CT (Material Basic View) |
| ATNAM | Characteristic Name | Mandatory Allowed Values:
|
| ATWRT | Characteristic Value | Mandatory
|
</Start CR0280>
3. ENR-Assembly Data Construction Rules
| Field Name | Field Description | Rule |
|---|---|---|
| zLegacyMATNR | Old material number | Mandatory Must be unique Must exist in PF2/WP2 |
| MAKTX_EN | Description (English) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same English language key texts) |
| MAKTX_FR | Description (French) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same French language key texts) |
| MAKTX_IT | Description (Italian) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Italian language key texts) |
| MAKTX_ZH | Description (Mandarin) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Mandarin language key texts) |
| MAKTX_PT | Description (Brazilian Portuguese) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Brazilian Portugese language key texts) |
| MAKTX_DE | Description (German) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same German language key texts) |
| MAKTX_ES | Description (Spanish) | Mandatory Guide for Description for Construction Type (A_SUB_ASSEMBLY = No): A = Technical Object Type GROUP DESCRIPTION (in specified language) Material Description = A+B Cannot have duplicate records based on corresponding language text (2 A/CT cannot have the same Spanish language key texts) |
</End CR0280>
Note: List of DCTs is maintained here: Conversion Specs Register (DCT & Cleansing Report)
Extraction Dependencies
| Item # | Step Description | Team Responsible |
|---|---|---|
| 1 | Relevancy Criteria for Equipment | SyWay A2D Data Team |
| 2 | Relevancy Criteria for Functional Location | SyWay A2D Data Team |
| 3 | Relevancy Criteria for BOM | SyWay A2D Data Team |
| 4 | Relevancy Criteria for Task List | SyWay A2D Data Team |
Transformation
The Target fields are mapped to the applicable Legacy field that will be its source, this is a 3-way activity involving the Business, Functional team and Data team. This identifies the transformation activity required to allow Syniti Migrate to make the data Target ready:
- Perform value mapping and data transformation rules.
- Legacy values are mapped to the to-be values (this could include a default value)
- Values are transformed according to the rules defined in Syniti Migrate
- Prepare target-ready data in the structure and format that is required for loading via prescribed Load Tool. This step also produces the load data ready for business to perform Pre-load Data Validation
Transformation Run Sheet
| Item # | Step Description | Team Responsible |
|---|---|---|
1 | Obtain DCT Sign-off from Business. | SyWay Data Team |
2 | In dspMigrate, select the wave – S4/HANA – Plant Maintenance | Syniti |
3 | Go to Process Area Launch and Process the Object – PM Assembly / Construction Type | Syniti |
4 | Review and Validate Error and Preload Reports | Syniti |
5 | Execute the transformation to prepare the target tables | Syniti |
6 | Validate data from pre-load and error reports | Business |
7 | Generate load files | Syniti |
Transformation Rules
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | MARA | MATNR | Material Number | Internal Generated Number |
| 2 | - | - | - | - | S/4 Hana | MARA | MBRSH | Industry Sector | Default to "M" |
| 3 | - | - | - | - | S/4 Hana | MARA | MEINS | Base Unit of Measure | Default to "EA" |
| 4 | - | - | - | - | S/4 Hana | MARA | MTART | Material type | Default to "IBAU" |
| 5 | DCT | MARA | RBNRM | Catalog Profile | S/4 Hana | MARA | RBNRM | Catalog Profile | Direct Mapping |
| 6 | DCT | MARA | zLegacyMATNR | Old material number | S/4 Hana | MARA | BISMT | Old material number | Direct Mapping |
| 7 | DCT | MARA | MAKTX_EN | Description (English) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
2. A/CT (Main) - ECC
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | MARA | MATNR | Material Number | Internal Generated Number |
| 2 | - | - | - | - | S/4 Hana | MARA | MBRSH | Industry Sector | Default to "M" |
| 3 | - | - | - | - | S/4 Hana | MARA | MEINS | Base Unit of Measure | Default to "EA" |
| 4 | - | - | - | - | S/4 Hana | MARA | MTART | Material type | Default to "IBAU" |
| 5 | - | - | - | - | S/4 Hana | MARA | RBNRM | Catalog Profile | Blank |
| 6 | PF2, WP2 | MARA | MATNR | Material number | S/4 Hana | MARA | BISMT | Old material number | Direct Mapping |
| 7 | PF2, WP2 | MAKT | MAKTX | Material Description | S/4 Hana | MARA | MAKTX_EN | Material Description | Direct Mapping where SPRAS = "E". Overwrite with ENR-Assembly DCT if provided (as part of enrichment) |
3. A/CT (Short Text) - DCT
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | - | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "F" |
| 3 | DCT | MARA | MAKTX_FR | Description (French) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
UNION
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | - | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "I" |
| 3 | DCT | MARA | MAKTX_IT | Description (Italian) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
UNION
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | DCT | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "1" |
| 3 | DCT | MARA | MAKTX_ZH | Description (Mandarin) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
UNION
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | DCT | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "P" |
| 3 | DCT | MARA | MAKTX_PT | Description (Brazilian Portuguese) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
UNION
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | DCT | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "D" |
| 3 | DCT | MARA | MAKTX_DE | Description (German) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
UNION
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DCT | MARA | zLegacyMATNR | Old material number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | DCT | - | - | - | S/4 Hana | MAKT | SPRAS | Language Key | Default to "S" |
| 3 | DCT | MARA | MAKTX_ES | Description (Spanish) | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping |
4. A/CT (Short Text) - ECC
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2, PF2 | MARA | MATNR | Material Number | - | - | - | - | Key to link to the A/CT (Material Basic View) |
| 2 | WP2, PF2 | MAKT | SPRAS | Language Key | S/4 Hana | MAKT | SPRAS | Language Key | Direct Mapping |
| 3 | WP2, PF2 | MARA | MAKTX | Description | S/4 Hana | MAKT | MAKTX | Material description | Direct Mapping where SPRAS <> "E" Overwrite with ENR-Assembly DCT if provided (as part of enrichment) |
5. A/CT (Characteristics Values Header) - DCT
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | KLAH | KLART | Class Type | Default to "001" |
| 2 | - | - | - | - | S/4 Hana | INOB | OBTAB | Name of Database Table for Object | Default to "MARA" |
| 3 | - | - | - | - | S/4 Hana | KLAH | CLASS | Class number | Default to "EAM_9999" |
| 4 | DCT | - | zLegacyMATNR | Material Number | S/4 Hana | MARA | MATNR | Material Number | Value Mapping: Assembly and Construction Type |
| 5 | - | - | - | - | S/4 Hana | KLAH | STATU | Class Status | Default to "1" |
6. A/CT (Characteristics Values Header) - ECC
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | KLAH | KLART | Class Type | Default to "001" |
| 2 | - | - | - | - | S/4 Hana | INOB | OBTAB | Name of Database Table for Object | Default to "MARA" |
| 3 | - | - | - | - | S/4 Hana | KLAH | CLASS | Class number | Default to "EAM_9999" |
| 4 | PF2, WP2 | MARA | MATNR | Material Number | S/4 Hana | MARA | MATNR | Material Number | Value Mapping: Assembly and Construction Type |
| 5 | - | - | - | - | S/4 Hana | KLAH | STATU | Class Status | Default to "1" |
7. A/CT (Characteristics Values Allocation) - DCT
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | KLAH | KLART | Class Type | Default to "001" |
| 2 | - | - | - | - | S/4 Hana | INOB | OBTAB | Name of Database Table for Object | Default to "MARA" |
| 3 | - | - | - | - | S/4 Hana | KLAH | CLASS | Class number | Default to "EAM_9999" |
| 4 | DCT | - | zLegacyMATNR | Material Number | S/4 Hana | MARA | MATNR | Material Number | Value Mapping: Assembly and Construction Type |
| 5 | DCT | CABN | ATNAM | Characteristic Name | S/4 Hana | CABN | ATNAM | Characteristic Name | Value Mapping: Characteristic A2D |
| 6 | DCT | AUSP | ATWRT | Characteristic Value | S/4 Hana | AUSP | ATWRT | Characteristic Value | Direct Mapping |
| 7 | - | - | - | - | S/4 Hana | AUSP | POSNR | Item Number | For each Characteristic Name per A/CT, default with "001" and increase sequentially if there are multiple values, eg: If there are 3 values for A_ALLOWED_TOT for one A/CT, then assign "001", "002", "003" accordingly. |
8. A/CT (Characteristics Values Allocation) - ECC
| Rule # | Source system | Source Table | Source Field | Source Description | Target System | Target Table | Target Field | Target Description | Transformation Logic |
|---|---|---|---|---|---|---|---|---|---|
| 1 | - | - | - | - | S/4 Hana | KLAH | KLART | Class Type | Default to "001" |
| 2 | - | - | - | - | S/4 Hana | INOB | OBTAB | Name of Database Table for Object | Default to "MARA" |
| 3 | - | - | - | - | S/4 Hana | KLAH | CLASS | Class number | Default to "EAM_9999" |
| 4 | PF2, WP2 | MARA | MATNR | Material Number | S/4 Hana | MARA | MATNR | Material Number | Value Mapping: Assembly and Construction Type |
| 5 | - | - | - | - | S/4 Hana | CABN | ATNAM | Characteristic Name | Value Mapping: Characteristic A2D based on value: A_SUB_ASSEMBLY |
| 6 | - | - | - | - | S/4 Hana | AUSP | ATWRT | Characteristic Value | Default to "Yes" |
| 7 | - | - | - | - | S/4 Hana | AUSP | POSNR | Item Number | Default to "001" |
List of Custom Target Reports for this object is maintained here: Conversion Specification - Custom Reports Register.
Transformation Mapping
| Mapping Table Name | Mapping Table Description |
|---|---|
Assembly and Construction Type | Mapping of legacy Assembly / Construction Type to new Assembly / Construction Type Note: New Assembly / Construction Type will be available after the data load. |
Characteristic A2D | Old to New Characteristic A2D |
List of Transformation Mappings with additional details is maintained here: Transformation Mappings.
Transformation Dependencies
List the steps that need to occur before transformation can commence| Item # | Step Description | Team Responsible |
|---|---|---|
| 1 | Ensure DCT tables completeness | SyWay Data Team |
| 2 | Ensure all Transformation mappings are up to date. | SyWay Data Team |
Pre-Load Validation
Project Team
Completeness
| Task | Action |
|---|---|
Verify Record Count | Data team to verify that the total number of relevant records from the source systems is equal to the total number of records in the Preload and Load Sheets. |
Accuracy
| Task | Action |
|---|---|
Conversion Accuracy | Data team to verify that all fields below meet pass the checks: 1. Mandatory Fields 2. Field and Value Mapping Correctness 3. Null Checks 4. Text Length Checks |
Review error reports | Review and correct the errors. Achieve a zero-error record count as much as possible. Raise defects for data remediated and requiring a correction in the source data. |
Business
Completeness
| Task | Action |
|---|---|
Verify Record Count | Business team to verify that the total number of relevant records from the source systems is equal to the total number of records in the Preload and Load Sheets. |
Accuracy
| Task | Action |
|---|---|
Conversion Accuracy | Business to verify that all the data in the load table/file is accurate as per endorsed transformation/mapping rules (and signed-off data) |
Load
The load process includes:
- Execute the automated data load into target system using load tool or product the load file if the load must be done manually
- Once the data is loaded to the target system, it will be extracted and prepared for Post Load Data Validation
Load Run Sheet
| Item # | Step Description | Team Responsible |
|---|---|---|
1 | Ensure Pre-load sign-offs are obtained. | SyWay Data team |
2 | Go to the load tool and select the correct load Program. | SyWay Data team |
3 | Proceed with Data load. | SyWay Data team |
4 | Validate few records loaded by accessing standard transactions. | SyWay Data team |
5 | Generate the post load reports in the tool. | SyWay Data team |
6 | Log errors as defects, if any and address resolutions. Close defects. | SyWay Data team |
7 | Resolve defects by re-upload and re-generate post load reports if necessary. | SyWay Data team |
8 | Business to validate the post load files as part of post-load validation, raise data defects or provide the post-load sign-off. | Business |
9 | Repeat steps 5 to 7 if necessary. | SyWay Data team |
Load Phase and Dependencies
Pre-Cutover: 1010 - PM Assembly / Construction Type
Pre-Cutover: 1010a - PM Assembly / Construction Type Characteristics Assignment
Note: A separate load program may need to be created for 1010a if these become a risk to the actual cutover and need to be removed from the critical path. This will be evaluated post Mock 1
Configuration
| Item # | Configuration Item |
|---|---|
| 1 | NRIV-Number Range |
| 2 | TCLA-Class Types |
| 3 | T006-Units of Measurement |
| 4 | T134-Material Types |
5 | T137-Industries for materials |
6 | T002-Language Key |
Conversion Objects
| Object # | Preceding Object Conversion Approach |
|---|---|
| 1008 | Catalog Profile |
| 1015 | Characteristics |
| 1009 | Class |
Error Handling
| Error Type | Error Description | Action Taken |
|---|---|---|
| Configuration | Invalid Number Range | Engage Functional team to expedite and fix the error in the system |
| Configuration | Invalid Class Types | Engage Functional team to expedite and fix the error in the system |
| Configuration | Invalid Units of Measurement | Engage Functional team to expedite and fix the error in the system |
| Configuration | Invalid Material Types | Engage Functional team to expedite and fix the error in the system |
| Configuration | Invalid Industries for materials | Engage Functional team to expedite and fix the error in the system |
| Configuration | Invalid Language Key | Engage Functional team to expedite and fix the error in the system |
| Invalid Date | Invalid Catalog Profile | Expedite whether the master data is changed in the system |
| Invalid Date | Invalid Characteristics | Expedite whether the master data is changed in the system |
| Invalid Date | Invalid Class | Expedite whether the master data is changed in the system |
Post-Load Validation
Project Team
Completeness
| Task | Action |
|---|---|
Verify Count | Data team to verify the record count created in target S/4 HANA by accessing post load reports in dspMigrate or standard reports from S/4 HANA. |
Verify Logs | Check if there is data that failed to load and perform the necessary actions (e.g. register as post load issue, or attempt to load the record again, etc.). |
Accuracy
| Task | Action |
|---|---|
Conversion Accuracy | Data team to verify that the |
Business
Completeness
| Task | Action |
|---|---|
Verify Count | Download Post Load Reports from dspMigrate and verify that the record count loaded in the target S/4 HANA is the same count as of the endorsed load file. |
Accuracy
| Task | Action |
|---|---|
Conversion Accuracy | Verify that the A/CT data in target S/4 HANA were loaded correctly via dspMigrate post load reports or standard reports from S/4 HANA. |
Key Assumptions
- Master Data Standard is up to date as on the date of documenting this conversion approach and data load.
- Data cleansing has met the required percentage threshold for the specified mock cycle and all preparation activities have been completed.
- Data entries in DCT are target-ready data unless a specific transformation rule is stated for that field in the transformation rules.
- Not all legacy A/CT need to be mapped to S/4 HANA A/CT. If any of the successor objects is dependent on a A/CT field with no mapped values, this will be an enrichment activity or manual transformation for the successor object to derive the A/C .
