(warning)     (warning)     (warning)     (warning)

The new wiki link for this data flow is here:

QV - Demand Review for SBS Dashboard - All except CM (Aero)

Please update the new doc there and no longer here.

(warning)    (warning)     (warning)     (warning)




This query was used to provide Qlik View Forecast informations from APO / DynaSys (Application CRM Analytics )

It is now used for Global Supply Chain (tableau) + Customer 360 (QlikSense ?)



see also DynaSys doc



To access QV : qlikview.solvay.com => Applications Global Supply Chain Dashboard will be accessible up to 2023 July 31th

To access Tableau : https://tableau.solvay.com => Global Supply Chain Dashboard here


QV was updated daily (monday to friday) (I do not know if it is still the case for QlikSens or Tableau)

→ around 7.15 am CET with  DynaSys data updated into BW at 4 am  (QV launched at 5 am and last 2 hours)

→ around 5.15 pm CET with  DynaSys data updated into BW at 2 pm  (QV launched at 3 pm and last 2 hours)


Description

BW - DP - Demand Review for SBS Dashboard (QV)

Technical NameQVSBS_BW_QRY_MVDYN11_0001

Application

DP - Demand Planning

Info-provider

MultiProvider MVDYN11

Usage type

Source for Qlikview

Expected users


Workbook/Query General Description


Few links to QV document to better understand CRM Analytics application

Dimensions Overview for Analytics Dashboard


CRM Analytics - Demand Forecast

General parameters

Global properties

TabScreenshotComment

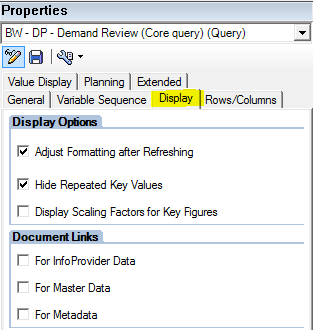

Display

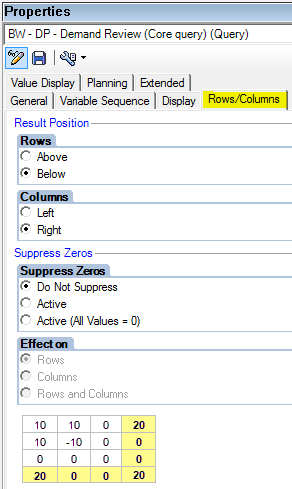

Rows/Columns

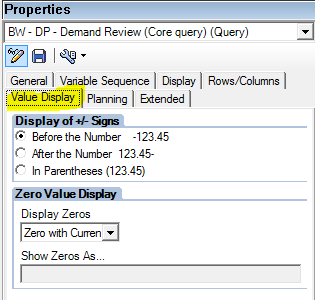

Value Display

Planning

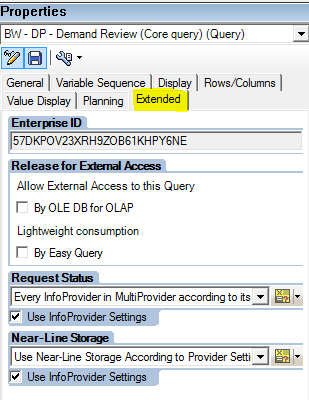

Extended

Variables

Definitions

Variable Name

Info-object

Selection Type

Required

Description/Explanation

CALMONT2

Calendar Month/Year (Interval, Mandatory)

0CALMONTHInterval/Mandatory/ManualEntryYes

V_CPFCTR1_2_0008

Global Business Unit (Selection Option, Optional, Auth)

CPFCTR1_2SelectionOption/Optional/Authorization/ManualEntryNo

V_C_MATNR2_0001

Material (Selection option)

C_MATNR2SelectionOption/Optional/ManualEntryNo

CPROD01

Commercial Product (Select option, Optional)

C_MATNR2__C_PRODSelectionOption/Optional/ManualEntryNo

VPROD_HIER

Product Hierarchy (Selection option, optional)

C_MATNR2__0PROD_HIERSelectionOption/Optional/ManualEntryNo

V_CUSTID_0002

Ship-to (Selection option)

C_SHIPIDSelectionOption/Optional/ManualEntryNoPreviously it was C_SHIPTO but description were not daily updated.

V_0DISTR_CHAN_0001

Distribution Channel (Selection option, Optional)

0DISTR_CHANSelectionOption/Optional/ManualEntryNo

V_C_GBR6_0001 / GBR Customer Group (Select Option, Optional)

GBR Customer Group (C_GBR13__GBR6)SelectionOption/Optional/ManualEntryNo

Ship-to info

Previous 19/10/2017



V_C_CUSTGP2_0001



Enterprise Customer Group (Section option, Optional)


V_0COUNTRY_0003

Ship-to Country (Selection option, Optional)

C_SHTCTRY

SelectionOption/Optional/ManualEntry

No



V_C_GRCUST_0001

Industrial Group (Selection option, Optional)

C_SOLDID__C_GRCUSTSelectionOption/Optional/ManualEntryNo

Sold-to info

V1 => Ship-to info (C_CUSTOMR__C_GRCUST)

V_C_SAL_GRP

Sales Group (Selection option, Optional)

C_DYN_017__C_SAL_GRP

SelectionOption/Optional/ManualEntryNoSales Group = Sales Rep = only for RCS

V_C_GZONE

Geo Zone (Selection option, Optional)

C_SHTCTRY__C_GZONESelectionOption/Optional/ManualEntryNoFrom Ship-to Country

V_C_PLANT_0010

Plant (Selection Option, Optional)

C_DYN_018__C_MPPLANTSelectionOption/Optional/ManualEntryNo

Variable Sequence

Filters

ObjectFilter ValueExplanation
InfoProvider (0INFOPROV)

= DYN Reporting / CRDYN11

= LOG - Reporting (Dynamic) / CRLOG01

= APO - Global (Dynamic) / CRAPO002

SnapShot cubes removed

09.2020 APO cube removed (not filled anymore since Special Chem go-live)


Concerned Period (C_FLGMTH)= 'M' and 'M-1'

Only current values are requiered

Flag Prospect (C_DYN_024__C_PROSP)<> X 'Prospect'Exclude SF Prospects from DynaSys


Key figures

All keyfigures without decimals as in Dynasys

DescriptiontypeRestricted or Calculated KeyFigureCalculation ruleConversionComments

FF Quantity M-1

Display Ratio K_FFM1QTYQCT_MATNR5Removed 18/12/2017

Final Forecast Quantity ETA/ETD

Display Ratio K_FFQTYQCT_MATNR5

 Renamed 26/11/2018 (previous FF Quantity)

Removed 18/08/2021

Final Forecast Quantity ETD

Display
Ratio K_DYN_034QCT_MATNR5Added 18/08/2021

Final Forecast Amount (EUR)

Display Ratio K_FCSTAMT

CTK_CAR4_M

Target curr = EUR

Logility + DynaSys (since 19/10/2017)

Translation key ZCAR4 -Begin of month

 Renamed 26/11/2018 (previous Forecast Amount (EUR)))

Renamed 18/08/2021 Previous (Final Forecast Amount ETA/ETD (EUR)

Final Forecast Amount (USD)

Display Ratio K_FCSTAMT

CTK_CAR4_M

Target curr = USD

Logility + DynaSys (since 19/10/2017)

Translation key ZCAR4 -Begin of month

 Renamed 26/11/2018 (previous Forecast Amount (USD))

Renamed 18/08/2021 Previous (Final Forecast Amount ETA/ETD (USD)

Forecast Amount (doc curr)Display Ratio K_FCSTAMT

no conversion

Logility + DynaSys (since 19/10/2017)

Removed 26/11/2018

Constrained Forecast Quantity

Display Ratio K_CONFORQCT_MATNR5Added 26/11/2018

Constrained Forecast Amount (EUR)

Display
Ratio K_BFR3EUR

CTK_CAR4_M

Target curr = EUR

Added 26/11/2018

Constrained Forecast Amount (USD)

Display
Ratio K_BFR3EUR

CTK_CAR4_M

Target curr = USD

Added 26/11/2018

Sales Team Forecast Quantity

Display Ratio K_DYSTFQCT_MATNR5

Added 26/11/2018


Sales Team Forecast Amount (EUR)

Display
Ratio K_DYN_031

CTK_CAR4_M

Target curr = EUR

Added 26/11/2018

Sales Team  Forecast Amount (USD)

Display
Ratio K_DYN_031

CTK_CAR4_M

Target curr = USD

Added 26/11/2018

Final Forecast Amount (LC)

Display
Ratio K_DYN_072Target Curr = Local Currency

Added 10/12/2018

renamed 18/08/2021 previous "Final Forecast Amount ETA/ETD (LC)"

Sales Team Forecast Amount (LC)Display
Ratio K_STSALESTarget curr = Local CurrencyAdded 10/12/2018
BudgetDisplay
K_DYBUD / 0UNITin KgAdded 29/08/2019
Budget in €Display
K_BUDEURno conversion, already in €Added 29/08/2019
Budget Net Sales ($)Display
K_DYN_066no conversion, already in $Added 29/08/2019
Budget Net Sales LCDisplay
K_DYN_0124no conversionAdded 29/08/2019
Budget Contribution MarginDisplay
K_DYN048no conversion, already in €Added 29/08/2019
Budget Contribution Margin ($)Display
K_DYN_064no conversion, already in $Added 29/08/2019
BFR06Display
K_DYBFR06in KgAdded 29/08/2019
BFR06 in €Display
K_BFR6EURno conversion, already in €Added 29/08/2019
BFR6 Net Sales ($)Display
K_DYN_067no conversion, already in $Added 29/08/2019
BFR06 Net sales LCDisplay
K_DYN_125
Added 29/08/2019
BFR6 Contribution MarginDisplay
K_DYN_032no conversion, already in €Added 29/08/2019
BFR6 Contribution Margin ($)Display
K_DYN_068no conversion, already in $Added 29/08/2019
Projected ICM (€)Display
Ratio K_DYN_046 Final Forecast Contribution Margin

no conversion, already in €

Added 08/10/2019

Projected ICM Current Month (€)


Display
Ratio K_DYN_129 Current Month Contribution Marginno conversion, already in €Added 08/10/2019
Projected ICM (USD)Display
Ratio K_DYN_046 Final Forecast Contribution Margin

CTK_CAR4_M

Target curr = USD

Added 12/11/2019
Projected ICM Current Month (USD)Display
Ratio K_DYN_129 Current Month Contribution Margin

CTK_CAR4_M

Target curr = USD

Added 12/11/2019


Characteristics

LocationInfo-object NameInfo-object TextExplanation (if needed)
Free0CALMONTHCalendar Year/MonthText
Rows0LOGSYSSource SystemNo display to avoid the display of the prefix for compound characteristics.
RowsC_MATNR2Material

Key + Text

RowsC_SHIPTIDShip-to

Key + Text

With attributes in display mode: C_GRCUST - Customer Group

RowsCPFCTR1_2BFC Global Business Unit

Key + Text

From DSO DBDYN02 to get the BU (C_DYN_010), then MasterData C_DYN_010 to get the GBU

12/03/2018 → Field now filled from Logility flow

FreeC_MATNR2__0PROD_HIERProd. HierarchyKey + Text
FreeC_MATNR2__C_PRODCommercial Product

Key + Text

Commercial Product is only available for RCS WP1. Do not exists for SOLVAY PF1.

FreeC_CUSTGP2Enterprise Customer Group (APO)

Key + Text

Only APO since 19/10/2017


FreeC_SHTCTRYShip-to CountryText
FreeC_SOLDID__C_GRCUSTIndustrial Group

Text

V1 = C_CUSTOMR__C_GRCUST

For V2 it has been changed for C_CUSTID. The field KONZS is taken from PRS Customer. PRS seems not contains all customers (only payer?). If Customer Group (C_GRCUST) are missing, the masterdata will have to be upgraded to get missing ones.

FreeC_SOLDIDSold-to

Key + Text

Previously, the Sold-to was C_SOLDTO, but description were not daily loaded.

FreeC_DYN_017__C_SAL_GRPSales GroupSales Group = Sales Rep = Only for RCS
FreeC_SHTCTRY__C_GZONEGeo ZoneNo description available
FreeC_CUSTOMR__0REGIONShip-to Region
FreeC_MATNR2__C_MAT_GRPMaterial Group
FreeC_MATNR2__C_MATGR2Packaging Type

Previous name : Material Group 2 (Release March 2017)

For Solvay PF1 only

FreeC_DYN_010BU
FreeC_DYN_018__C_INCOTRMIncoterms

Available since 07/02/2017

Incoterms of the last M3 sales order not rejected

(No reason for Rejection , Item Category M3N, most recent change on date)

FreeC_DYN_018__C_DYN_016

Key Account

(Ship-to KA) (APO)

RCS notion

Text in MD C_GRCUST

Available since 14/03/2017

Only APO since 19/10/2017

Will be removed soon. Use GBU one => item 480

FreeC_IECRA2IECRAAPO only
FreeC_GBR14__C_GBR1Application

Old C_GBR5__C_GBR1 since 19/10/2017

FreeC_GBR14__C_GBR4Corporate End Use

Old C_GBR5__C_GBR4 since 19/10/2017

FreeC_GBR14__C_GBR2Market

Old C_GBR5__C_GBR2 since 19/10/2017

FreeC_GBR14__C_GBR3Segment

Old C_GBR5__C_GBR3 since 19/10/2017

FreeC_PLANTPlant
FreeC_MATNR2__C_FMPRDProduct Family Code
FreeC_CUSTOMR__0COUNTRYCust: Country
FreeC_DYN_018__C_COMPCDECompany code

with following attributes in display mode:

  • 0COUNTRY - Country key
  • C_MNGCTRY - Management Country
  • C_GZONE - Geographie/Zone
  • C_ZONE - BFC Geographie/Zone
FreeC_DOCTYP2Sales Document Typevalue DYN, APO, LOG => will be soon available
FreeC_GBR15__C_SHIPKAShip-to KA (GBR) for DYN, APO. Available since 19/10/2017
FreeC_SHTCTRY__C_ZONEBFC Geographie/ZoneAvailable since 19/10/2017
Free C_DYN_024Ship-to (incl.Prosp) For DYN, new axis Ship-to including Sales Force prospects => Available since 19/10/2017
Free0SALES_GRPSales Group (Log)

Available since 12/03/2018 for QV reporting.

Removed 10/12/2018

FreeC_GBR13_C_GBR6GBR GBU group (Ship-to)Available since 23/07/2018 for QV reporting.
FreeC_GBR18_C_GBR20GBR GBU Mat Sub-grpAvailable since 23/07/2018 for QV reporting.
FreeC_GBR18_C_GBR19GBR GBU Mat GroupAvailable since 23/07/2018 for QV reporting.
FreeC_GBUZONE__C_ZONEH2GBU Zone (hier. 2)  Available since 23/07/2018 for QV reporting.
FreeC_GBUZONE__C_ZONEH1GBU Zone (hier. 1)Available since 23/07/2018 for QV reporting.
FreeC_MATNR2_C_LIP02Product Line 02Available since 23/07/2018 for QV reporting.
FreeC_MATNR2_C_LIP03Product Line 03Available since 23/07/2018 for QV reporting.
FreeC_MATNR2_C_LIP04Product Line 04Available since 23/07/2018 for QV reporting.
FreeC_DYN_005_C_TACTIC2Tactical Material  Available since 23/07/2018 for QV reporting.
FreeC_DYN_017_C_ZIPARTCSO                                     Available since 23/07/2018 for QV reporting.
FreeC_CUSTOMR_0CITYShip-to CityAvailable since 23/07/2018 for QV reporting.
FreeC_DYN_018_C_MPPLANTMain Shipping Plant Available since 23/07/2018 for QV reporting.
FreeC_MATNR2_C_MAGRVPackaging Materials Available since 23/07/2018 for QV reporting.
FreeC_DYN_018_C_VEPARTAccount Manager  Available since 23/07/2018 for QV reporting.
FreeC_DYN_018_C_VWPARTCCS REP Available since 23/07/2018 for QV reporting.
Free

C_DYN_019_C_DYN_020

C_DYN_021__C_DYN_020

Planning Zone

Available since 23/07/2018 for QV reporting.

Changed to C_DYN_21 27/11/2018

FreeC_DYN_021_C_DYN_022ABC Class  (auto)    Available since 23/07/2018 for QV reporting.
FreeC_DYN_021_C_DYN_023ABC Class  (manual) Available since 23/07/2018 for QV reporting.
FreeC_SOTCTRY_C_ZONEBFC Geographie/Zone Available since 23/07/2018 for QV reporting.
Free C_DYN_C_PROSPFlag Prospect Available since 23/07/2018 for QV reporting.
FreeC_DYN_018__C_PRDFACT Default Prod Factory Available since 23/07/2018 for QV reporting.
FreeC_DYN_005__C_GRPPGMIProduct Group (PGMI)  Available since 23/07/2018 for QV reporting.
FreeC_MATNR2_C_FMPRD Product FamilyAvailable since 23/07/2018 for QV reporting.
FreeC_SOTCTRYSold-to Country Available since 23/07/2018 for QV reporting.
FreeC_SOTCTRY__C_Zone  Sold-to BFC Geographie/Zone Available since 23/07/2018 for QV reporting.
FreeC_DYN_018__C_INCOTM2Incotems 2  Available since 23/07/2018 for QV reporting.
FreeC_DYN_018__C_INCOTRMIncoterms (Solvay)

Key ; Available since 18/10/2018

FreeC_DYN_018__C_INCOTM2Incoterms 2 (Solvay)

Key  ; Available since 18/10/2018

FreeC_DYN_017__C_INCOTRMIncoterms (RCS)Key  ; Available since 18/10/2018
FreeC_DYN_017__C_INCOTM2Incoterms 2 (RCS)Key  ; Available since 18/10/2018

Cells

Conditions

Condition Name

Active

By default

Key Figure

(Structure)

OperatorValueCharacteristic Assignement






Exceptions

Exception Name

Active

By default

Alert Level

OperatorValue

Other parameters

(if different from default)

Yes/No






  • No labels
